Name: Yottamaster 5 Bay RAID Aluminum External Hard Drive Enclosure for 2.5" 3.5" SATA HDD/SSD Direct Attached Storage for Data Backup
SKU: 1005008879310056
Availability: InStock

Warm Reminder:

Before placing an order, please choose the country plug you need,We

will ship the plug to

you according to your needs. If it is not stated, the EU Plug will

generally be sent by default.

Enclosure First Operation Video

Yottamaster PS Series

Yottamaster 5-Bay RAID HDD Enclosure for 2.5″/3.5″ HDD/SSDs – 5 X 16TB

About this item

【Reliable External Storage System for Individuals】This 5 bay hdd enclosure support up to 80TB external expanded storage. The front door adopt user-friendly PUSH Design for easy install and replacement of hard drives. It is an ideal choice for personal storage at home and office. It can support different drive type(s)-2,5″/3,5″ HDD/SSDs, so you can take advantage of your hard drives’ potential fully.

【Flexible RAID for Customized Work Need】It supports RAID 0/1/3/5/10/JBOD(SPAN)/CLONE RAID modes. You can optimize/simplify your workflow by chosing suitable RAID configuration. You can choose hardware RAID for easy set without downloading application, or you can use Software RAID to set/manage RAID modes. It is the ultimate storage solution for demanding video workflows on location and in the studio.(Note: Some models without RIAD)

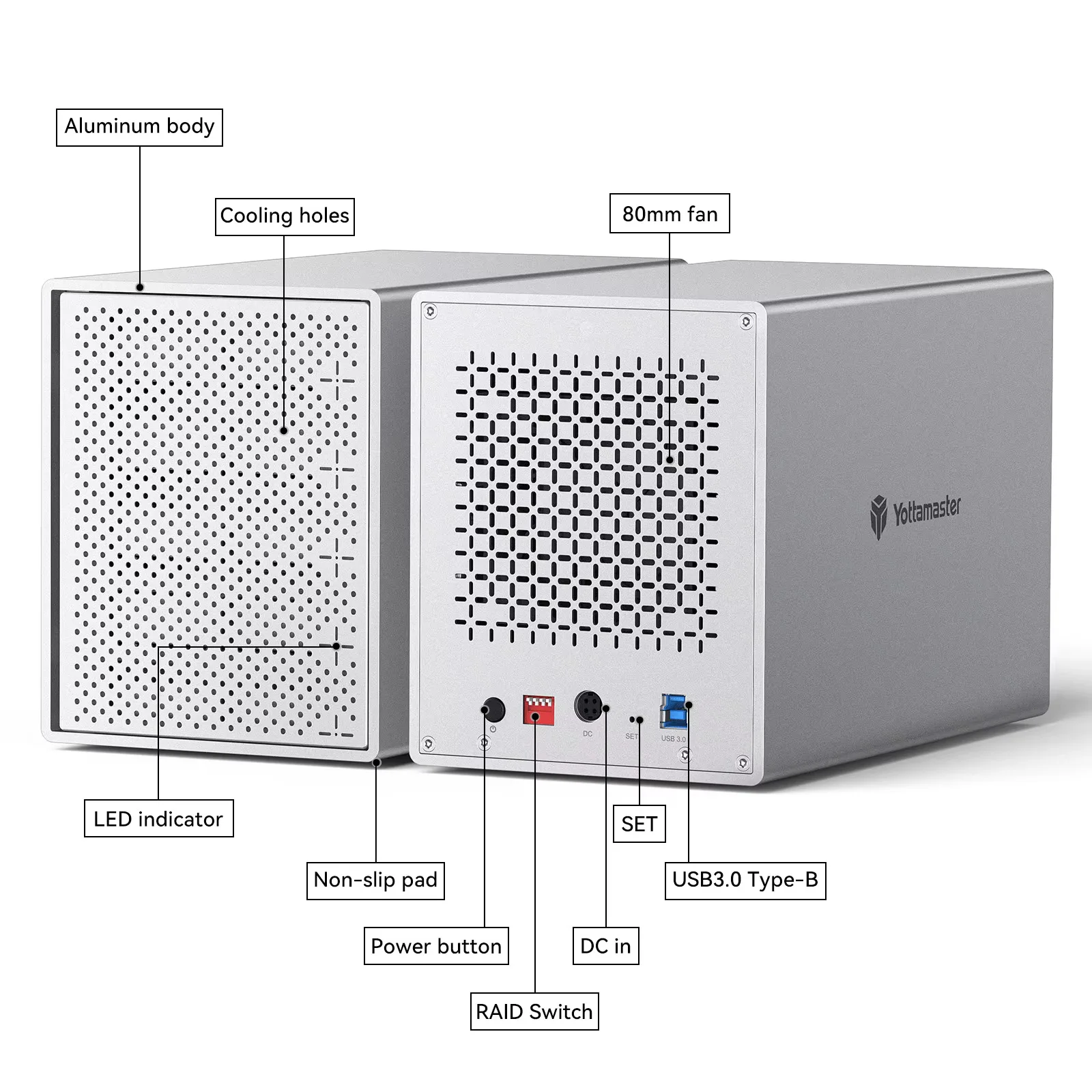

【80mm Silent Fan Inside】The 5 bay enclosure built with rugged heat-dissipating aluminum shell, front and rear with cooling holes, a 80mm silent fan inside can effectively accelerate air convection and rapid cooling. It is ideal for noise-sensitive environments.

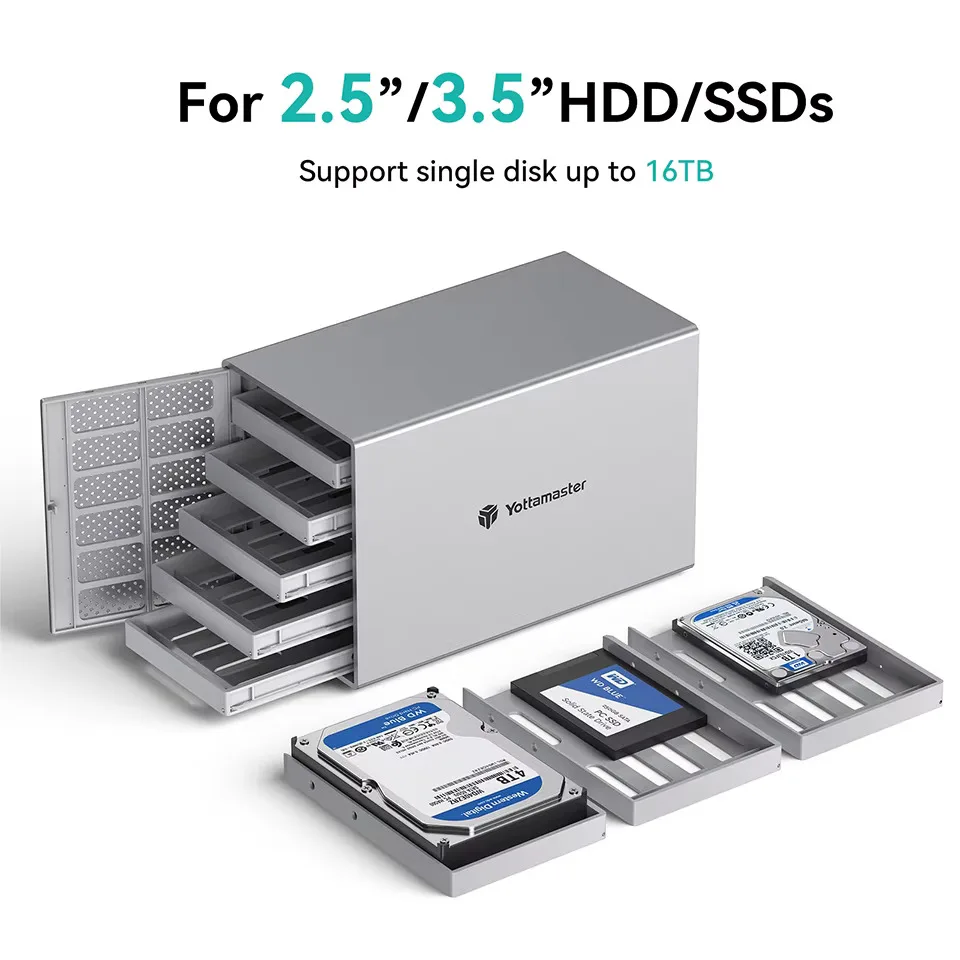

【For 2,5/3,5-inch Hard Drives】It comes with five removeable trays, allowing for easy installation and replacement of either the large desktop hard disk drives or the portable laptop drives and SSD’s. Five indicator lights help you to monitor the working status of your hard drives whenever.

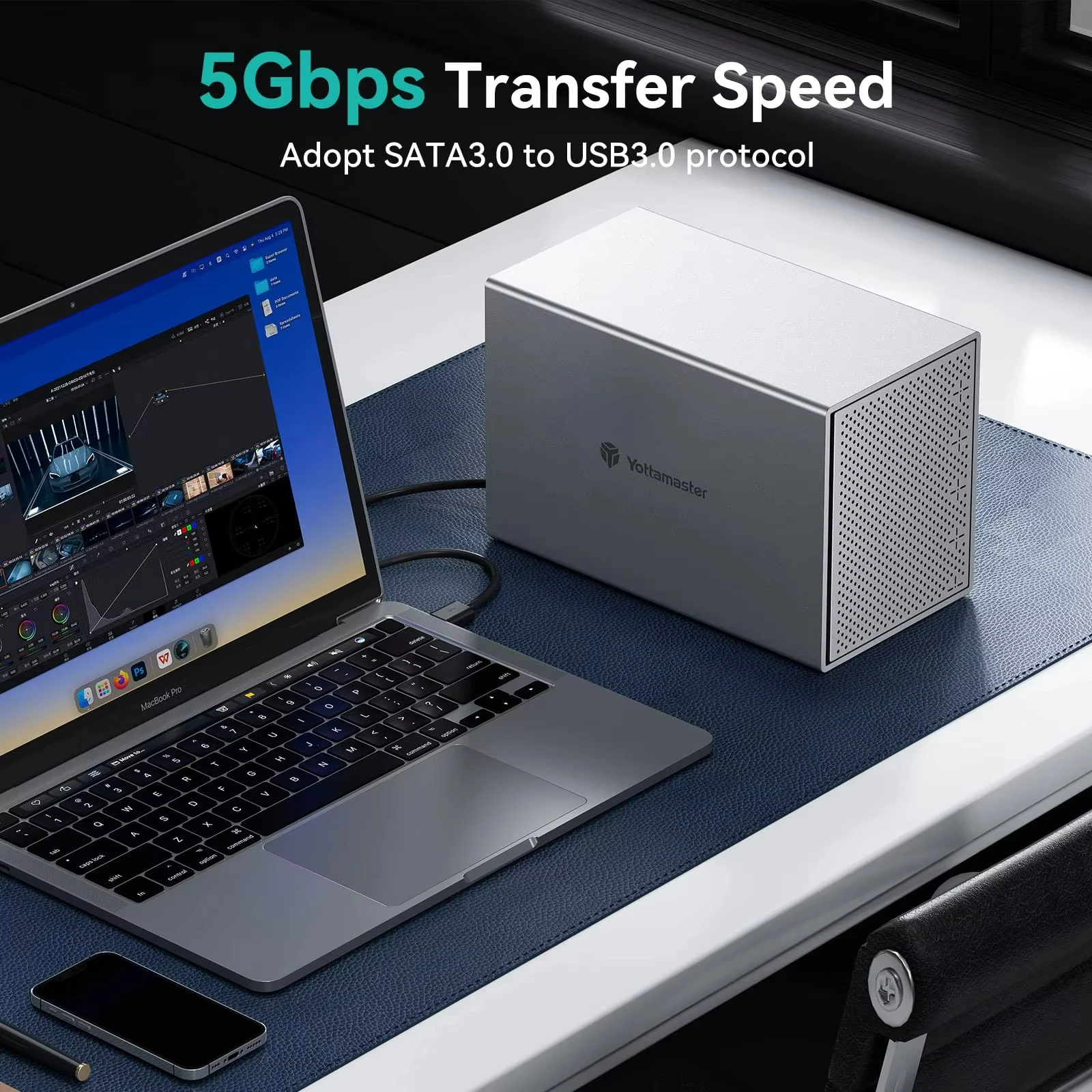

【5Gbps Transfer Rate】This 5 bay hdd enclosure adopt USB3.0 protocol, transfer rate up to 5Gbps (MAX). Equipped with a versatile USB3.0 Type-B interface to connect other peripheral devices. Compatible with most Windows, Mac and Linux systems.

【Hard Drive Usage Note】If you are using a brand new hard drive, it may need to be formatted and partitioned before it can be recognized by the computer. Please remember to back up your data.

Warm reminder :

1.Try to use a new disk when building a RAlD. Setting or changingthe RAlD mode will clear the contents of the hard disk,Please back up important data before using the old hard disk.

2.When switching RAID mode, the hard disk will be formatted,When replacing the hard disk or replacing the hard disk sequence,be sure to exit the hard disk cabinet and power off, and make proper data backup.

This enclosure support RAID 0 / 1 / 3 / 5 /

10 / JBOD/ CLONE

modes for controlling speed, capacity, or data redundancy, huge capacity for archiving, and enterprise-class drives dishing out intense performance so you can do what you do — better.

RAID 5 Mode is the Most Cost-effective

Choice For 5-bay Hard Drive Enclosures

Single disk support up to 16TB

2.5″ hard drive: fixed with 4 screws at the bottom.

3.5″ hard drive: fixed with 2 screws on both sides.

Better Heat Dissipation Performance

Keep your HDD/SSD in normal temperature.

Sleep Energy Saving

No read-write for 10min, entering sleep state

Precautions for Power Supply Plug

Please refer to the picture attached to insert the plug as the indicated direction, or the enclosure won’t work properly if the plug is inserted in a wrong direction.

Make sure that the flat end of the power connector is facing up.

Toolless-Easy to install

There are Installation Vedio from start, Pls feel free to message our if any question

Additional information

Weight	18 lbs
Dimensions	25 in
Brand Name	YOTTAMASTER
Origin	Mainland China
High-concerned chemical	None
Plug Type	UK Plug
Supporting Hard Drive Capacity	50TB(5*10TB)
External Interface	USB
Case Material	aluminum
Model Number	Yottamaster-PS
Package	Yes
Size	3.5"
Color	Silver
Material	Aluminum Alloy
3*Chip	JMS567+ASM1542+JMB394
Transmission rate	5Gbps

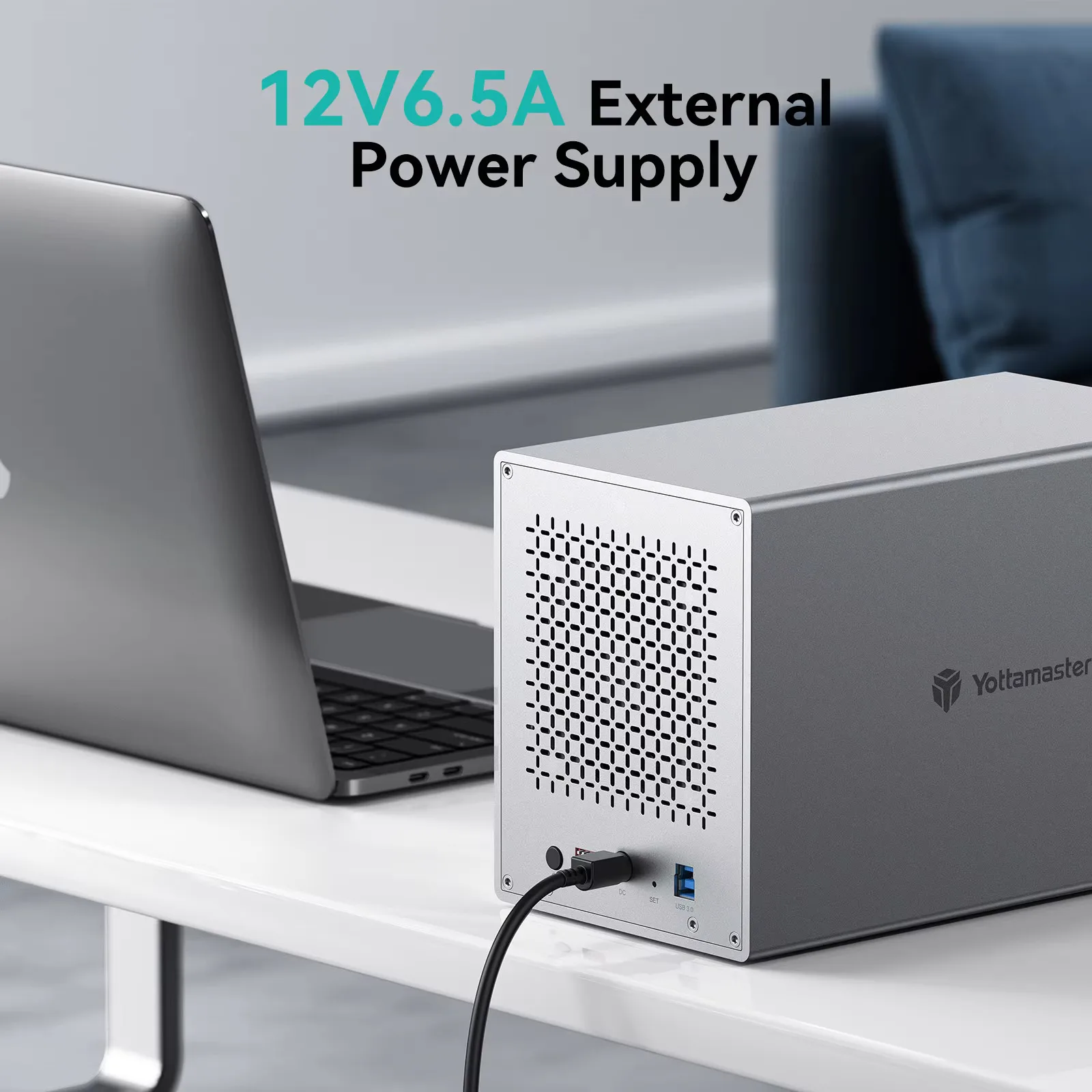

Product supply	12V/6.5A
Support System	Windows / Mac /Linux
