ZHICHUN 7/10/13.3/15/15.6/17/19/21.5/32 inch Computer touch screen android HMI monitor industrial panel pc kitchen Display
RM 102.12 RM 754.44Price range: RM 94.56RM 102.12 through RM 698.55RM 754.44 Excl. SST (-40%)
ZHICHUN Touch Screen Computer Fanless Customized Industrial Lcd PC For Industrial Machine

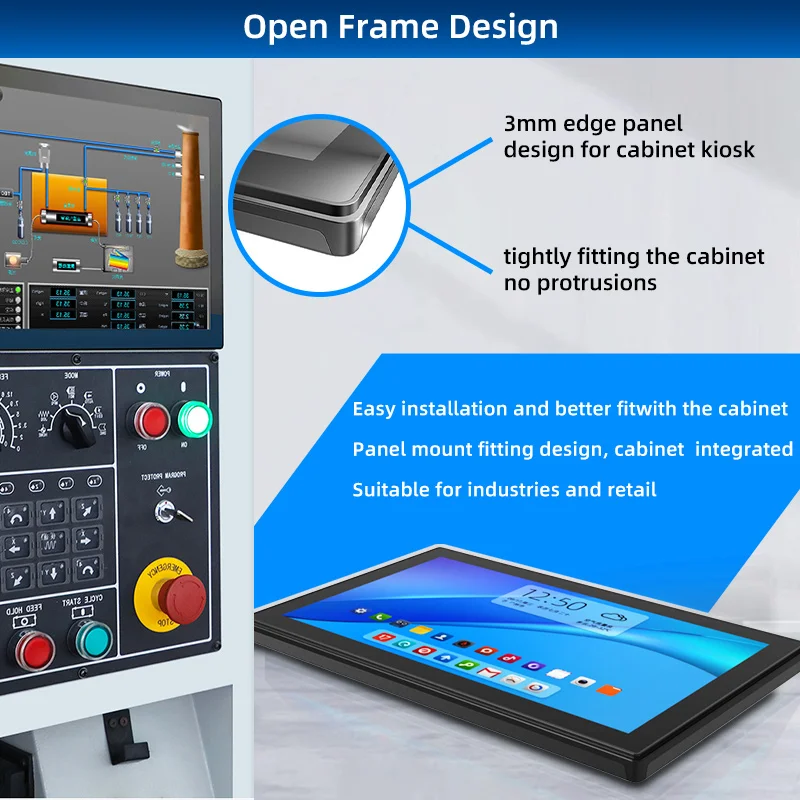

This open frame industrial panel pc is a great choice to embed in a machine, like vending machine
industrial HMI Machine, Automatic retail machine，Laser touch machine, retail cabinet, even any test box.
That is perfect fit after the touch panel embedded.
ZHICHUN is a trusted computer manufacturer in Guangzhou, China.
Many factory and customers buy our products.
In 2023, the monitor and computer totally sell out 30,000 pcs.
Thus, our enginners are experience to slove your problems.
And we promise, we will support totally free 1 years warranty.
Or you can last warranty by paying extra.
|
USB |
1 * USB-B |
|
DC |
1 * DC |
|
HDMI |
1 * HDMI |
|
VGA |
1* VGA |
|
Audio |
Line-out |
|
Type |
PCAP Touch |
|
Respond Time |
≤5ms |
|
Luminousness |
85±5% |
|
Surface Hardness |
6H |
|
Click Lifetime |
50 millions times |
|
Anti Static Pressure |
5kg/cm2 |
|
CommunicationInterface |
USBinterface |
|
Type |
7 inches |
|
Interface |
LVDS |
|
Backlight |
LED |
|
BacklightMTBF |
50000h |
|
Resolution |
1024*600 |
|
Brightness |
300cd |
|
Dynamic Contrast |
1000:1 |
|
Viewing Angle |
R/L:65(Typ.), U/D:65(Typ) |
|
Operating Temperature |
-10－+60 |
|
Storage Temperature |
-20－+70 |
|
Relative Humidity |
20%－90% |
|
Outline Dimension |
186mm×120mm×38.3mm(L*W*H) |
|
Display Dimension |
182.5mm×116.2mm(L*W) |
|
Hole Size |
156mm×88mm(L*W) |
|
Shell Material |
Metal plate |
|
Installation Type |
Embedded,Wall-Mounted,Desktop,VESA |
Different install ways to choose.
Additional information
| Weight | 18 lbs |
|---|---|
| Dimensions | 10 in |
| Brand Name | NoEnName_Null |
| High-concerned chemical | None |
| Type | Industrial Monitor |
| Battery Included | Yes |
| Origin | Mainland China |
| Package | Yes |
| Resolution | 1920*1080 |
| Plug Type | EU Plug |
| Model Number | ZPC007-S111 |
| Certification | RoHS |
| Color | black |
| Industrial pc cpu i3-4th | buy 15.6 win10 4G128G options |
| About price | the link not include shipping cost |
| custom high brightness | 500/1000/1500 nits options |
| Power supply | 9-36V,contact to your needs. |
| Custom ports | yes, just tell your request and we will quote price for you |
| RS232/RS485 | support |
